Metal Line Connection Aluminum Honeycomb Wall Panel With Decorative Lines

Name: "Metal Line Connection Aluminum Honeycomb Wall Panel With Decorative Lines"
Rating: 5 (625 reviews)

Quantity:

SKU: 4261592665

Model: NBW-WPB-003

Product Details

Metal Line Connection Aluminum Honeycomb Wall Panel With Decorative Lines

Metal Line Connection Aluminum Honeycomb Wall Panel

Product Summary: Our metal line connection wall panel features an innovative metal line joining system that creates visible, decorative seams between panels, adding a modern architectural touch. The panel retains all benefits of aluminum honeycomb construction: lightweight, strong, waterproof, and formaldehyde-free.

Key Selling Points

Decorative Metal Lines: The metal line connection provides an aesthetic grid pattern, ideal for accent walls and modern interiors.
0 Formaldehyde: Certified zero formaldehyde emissions (GB18584-2001, GB18584-2024), safe for indoor use.
Versatile Surface Finishes: Choose from 8+ finishes including wood grain, high-gloss PETG, and solid colors to match any décor.
Easy Installation: Metal line profiles simplify alignment and reduce installation time compared to traditional methods.
Durable & Maintenance-Free: Aluminum construction resists moisture, mold, termites, and corrosion; easy to clean.

Technical Specifications

Parameter	Value
Model	NBW-WPB-003 (Metal Line)
Thickness	5mm, 9mm, 10mm, 18mm (customizable)
Standard Size	1.22m x 2.75m (customizable)
Aluminum Skin Thickness	0.3mm / 0.48+0.2mm / 0.65+0.2mm / 1.0mm
Honeycomb Core Size	3x3 / 4x4 / 5x5 / 8x8 / 10x10 mm² (customizable)
Surface Finishes	Solid wood veneer, PETG high gloss, scratch-resistant wood grain, melamine CPL, solid color, powder coating, wood grain heat transfer
Connection Method	Metal line (visible seam)
Certifications	ISO9001:2015, ISO14001:2015, GB18584-2024, SGS RoHS, CTC Peel Strength

Models and Options

Available in custom thicknesses, aluminum skin options, and over 50 color/pattern combinations. The metal line profiles can be anodized or painted to match the panel color for a uniform look, or contrast for emphasis.

Materials and Structure

Core: High-density aluminum honeycomb. Skins: Aluminum alloy. The metal line is made of extruded aluminum alloy, securely attached to the panel edges, forming a robust connection.

Applications

Feature walls in hotels, lobbies, and showrooms
Commercial office partitions and reception areas
Retail store displays and boutique interiors
Ceiling integration (matching ceiling panels available)

Customization

We provide OEM/ODM services: custom sizes up to 1.22m x 2.75m, custom metal line spacing and design, and custom color matching. MOQ: 1 sheet. Contact us for details.

FAQ

Q: Are metal lines purely decorative or structural?

A: They serve both: the lines create a decorative pattern while also acting as a mechanical connection between panels, improving overall stability.

Q: Can the metal lines be customized to different widths?

A: Yes, we can customize the metal line profile dimensions to suit your design requirements.

Q: Is this panel suitable for wet areas?

A: Yes, aluminum is waterproof and doesn't swell when exposed to moisture. Suitable for bathrooms and kitchens.

Q: What is the lead time?

A: Stocked items ship within 24 hours. Custom orders typically 7-15 days.

Q: Do you provide installation guidance?

A: Yes, our technical support can provide installation recommendations and cutting optimization advice.

Q: What payment methods?

A: T/T with 50% deposit. Also accept L/C and multi-currency transfers through Hong Kong bank.

Inquiry Information

Contact: Bea (WhatsApp: +86 18138309908), Summer (WhatsApp: +86 13927285115). Email: nbw@ashop.ai.

Image Gallery

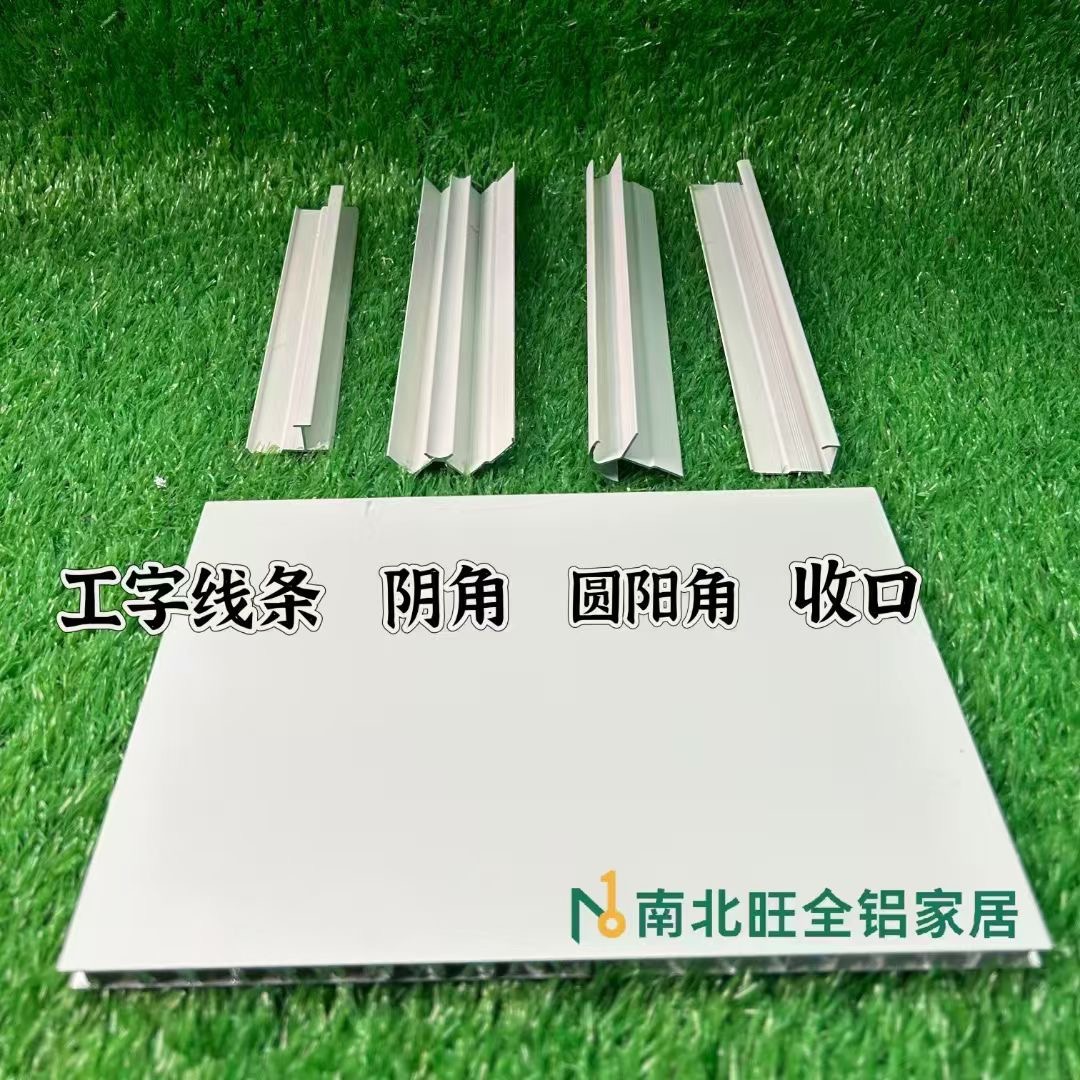

Metal line profile

Metal line connection diagram — Connection diagram

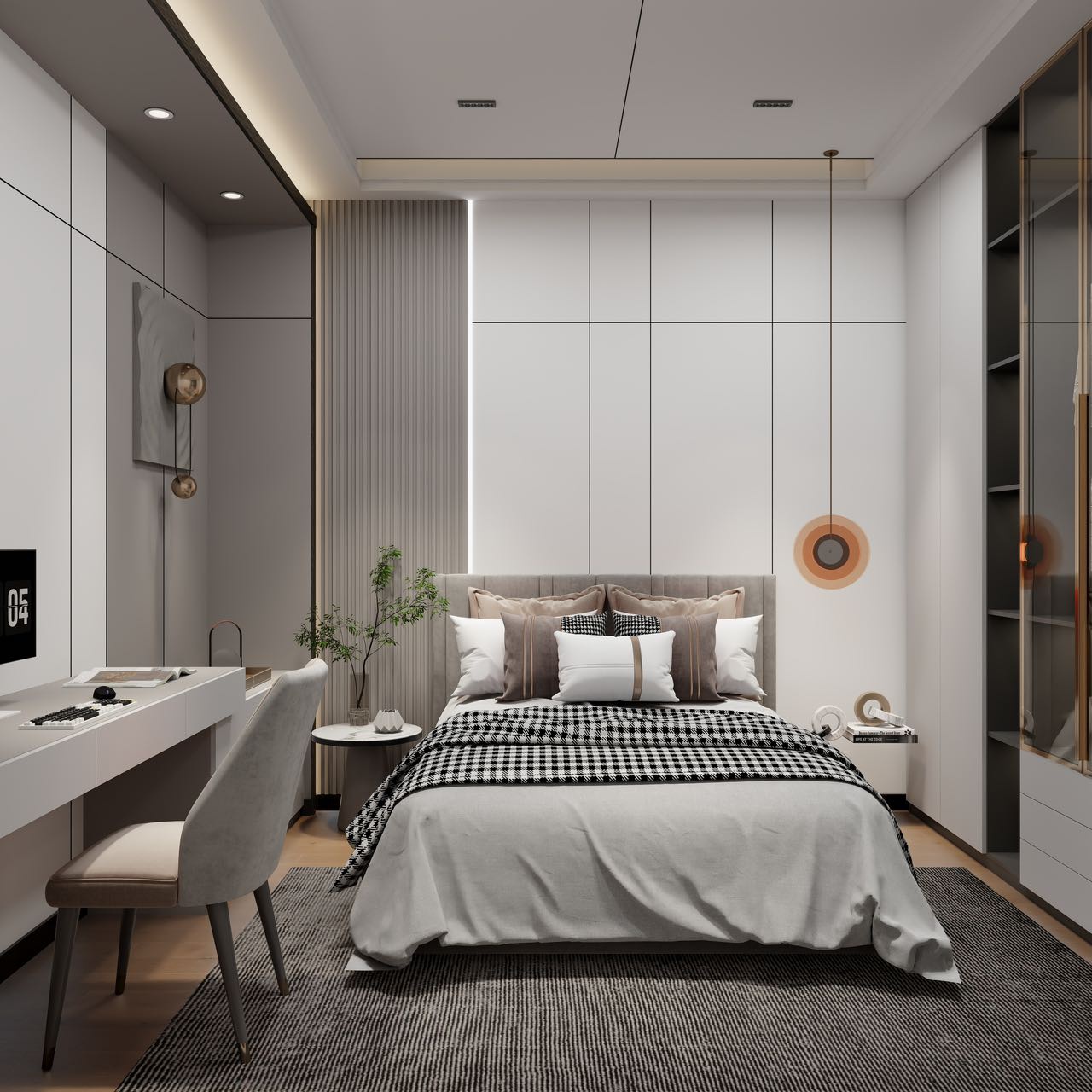

Metal line wall panel in bedroom application — Bedroom installation
